WASHING MACHINE & CENTRIFUGE MACHINE

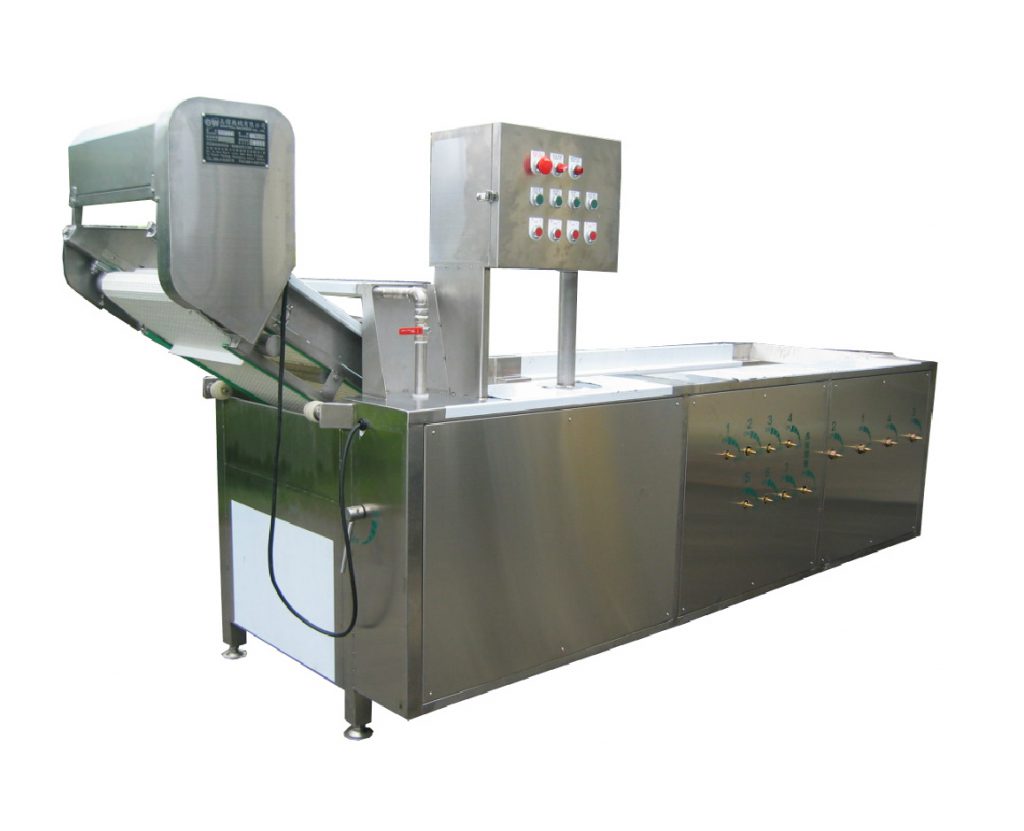

WA-306 Mesin Pencuci Makanan Kontinyu

Length         : 3000 mm
Width           : 915 mm
Height          : 1350 mm
Capacity      : 500 – 700 Kg/Hr
Power          : 6 HP + 1/4 HP (380V/3Ph)

  • Vegetable Belt Cutter (GW-806A) -> Pre-Washing (WA-305) -> Vegetable Washer (WA-306)
  • To take out the mud and dirty subsuming (sand, stones, insects,
    etc) on foodstuff.
  • There are four rotatable nozzles control on the washing machine.
  • Easy to control the directionand speed of leaf vegetable of fruit.

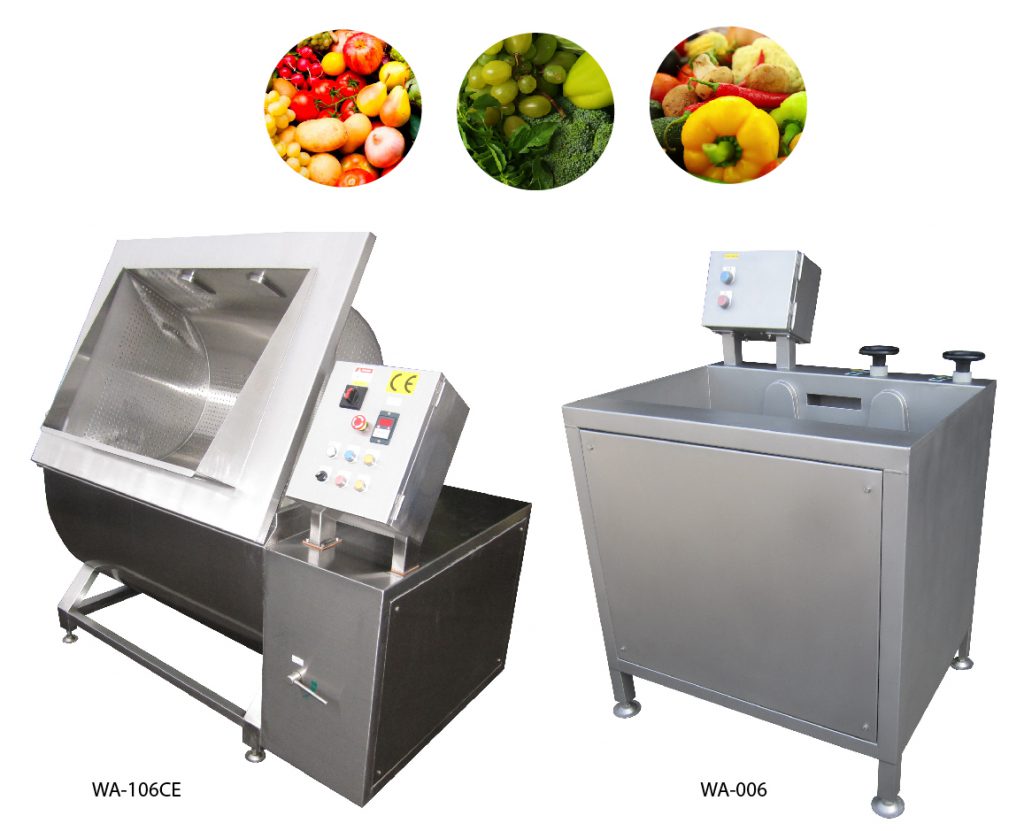

Universal Washing Machine

  • To solve the traditional way of washing fruit, vegetable, meat, fish and frozen foods and both time consuming.
  • To take out the mud and dirty substance.
  • Drum made of stainless steel 2mm with overflow pipe and drain.
  • Discharge by hydraulic cylinder, labor saving.
  • Washing cycle timer setting.



MACHINE SPECIFICATION :

Dimension                     : 750x675x1080 mm
Capacity                         : 3 – 5 Kg/time
Power (380V/3Ph)       : 1 HP

Dimension                    : 1720x1000x980 mm
Capacity                        : 15 – 20 Kg/time
Power (380V/3Ph)      : 2 HP + 1 HP

Dimension                    : 1720x1000x980 mm
Capacity                        : 15 – 20 Kg/time
Power (380V/3Ph)      : 2 HP + 1 HP

Three Tank / Four Tank Washing Machine

  • Suitable for fruit and leaf vegetable or tuber vegetable washing
    after cut.
  • Four tanks have four different functions. Ex. Pre-Washing.
  • Washing chemical treat cooling.
  • Washing by water pressure or air pressure under water (soft washing).
  • Add steam heat control system in air tank. (option)



MACHINE SPECIFICATION :

Dimension                 : 2300x1550x1450 mm
Power (380V/3Ph)   : 1HP + 2HP x 2 + 1/2HP x 2

Dimension                 : 2770x1670x1210 mm
Power (380V/3Ph)   : 1HP + 2HP x 3 + 1/2HP x 3

Dimension                 : 3670x1400x1210 mm
Power (380V/3Ph)   : 1HP + 2HP x 4 + 1/2HP x 4
